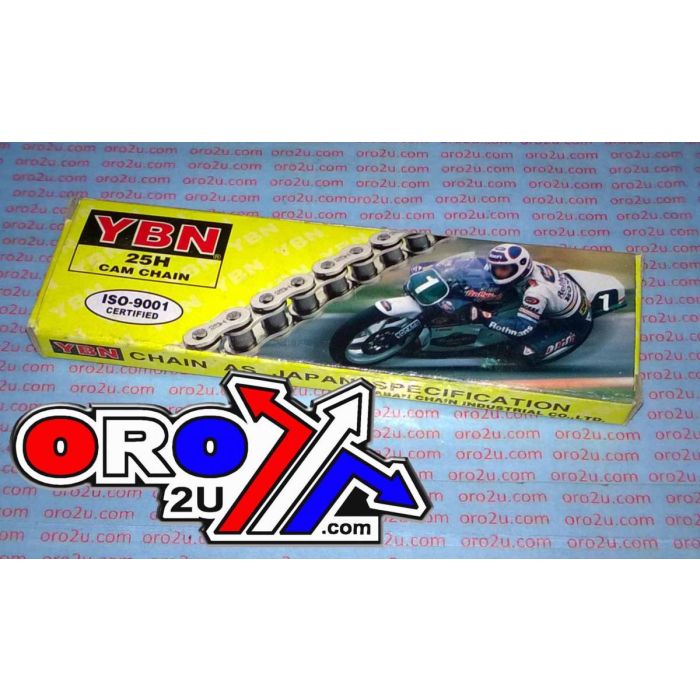

CAM CHAIN YBN 25H 90 LINKS

YAMOTO
110cc Quad Bike ATV,
HONDA
CRF100F 2004-2013,
NSF100 1985
XL100S 1982-1984,
XR100,
Many others see below.

CAMSHAFT CAM CHAIN 25H x 90 LINGS YABAN / YBN.

Cam chain is made from the highest quality select steel alloys that are light, yet provide maximum strenght. For great durability, the cam chains feture percision solid bushings and shot peened parts.

- Unmatched reliability and performance from high-tech materials.
- Manufactured to exacting standards so the engine can be rebuilt with total confidence.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Please see image before ordering to avoid mistakes.
- Best value for money.
- ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
- Easy to install but if unsure please use a professional


Part No. 30-450.090.YBN (oro2u.com)

Cross reference numbers ONLY.
3113005. DIDC25H090 DID 25H X 090L , OLD No. 30-454.DID, 14401-436-003 14100-K28-910

• Part #: 25H
• Pitch (P): 0.250"
• Bushing Dia (D): 0.130"
• Width Between Inner Plates (e): 0.125"
• Pin Diameter (d): 0.091"
• Pin Length/ Chain Width (W): 0.354"
• Pin Length/ Connecting Link Width (O): 0.453"
• Inner Plate Height (H): 0.24"
• Minimum Breaking Load: 1,080 LBS (490 Kgs)
• Weight: 0.12 LBS/ FT

1979 XL100S A - CAM CHAIN / TENSIONER
1980 XL100S A - CAM CHAIN / TENSIONER
1981 XL100S A - CAM CHAIN / TENSIONER
1981 XR100 A - CAM CHAIN / TENSIONER
1982 XL100S A - CAM CHAIN / TENSIONER
1982 XR100 A - CAM CHAIN / TENSIONER
1983 XL100S A - CAM CHAIN / TENSIONER
1983 XR100 A - CAM CHAIN / TENSIONER
1984 XL100S A - CAM CHAIN / TENSIONER
1984 XR100 A - CAM CHAIN / TENSIONER
1985 XL100S A - CAM CHAIN / TENSIONER
1985 XL100S AC - CAM CHAIN / TENSIONER
1985 XR100R A - CAM CHAIN
1986 XR100R A - CAM CHAIN
1987 XR100R A - CAM CHAIN
1988 XR100R A - CAM CHAIN
1989 XR100R A - CAM CHAIN
1990 XR100R A - CAM CHAIN
1991 XR100R A - CAM CHAIN
1992 XR100R A - CAM CHAIN
1993 XR100R A - CAM CHAIN
1994 XR100R A - CAM CHAIN
1995 XR100R A - CAM CHAIN
1996 XR100R A - CAM CHAIN
1997 XR100R A - CAM CHAIN
1998 XR100R A - CAM CHAIN
1998 XR100R AC - CAM CHAIN
1999 XR100R A - CAM CHAIN
1999 XR100R AC - CAM CHAIN
2000 XR100R A - CAM CHAIN
2000 XR100R AC - CAM CHAIN
2001 XR100R A - CAM CHAIN
2002 XR100R A - CAM CHAIN
2003 XR100R A - CAM CHAIN
2004 CRF100F A - CAM CHAIN
2005 CRF100F A - CAM CHAIN
2006 CRF100F A - CAM CHAIN
2006 NSF100 A - CAM CHAIN / TENSIONER
2007 CRF100F A - CAM CHAIN
2008 CRF100F A - CAM CHAIN
2009 CRF100F A - CAM CHAIN
2011 CRF100F A - CAM CHAIN
2012 CRF100F AC - CAM CHAIN
2013 CRF100F AC - CAM CHAIN

s
Assemblies where 14100-K28-910 is used
2014 CRF125F AC - CAMSHAFT / VALVE
2014 CRF125FB AC - CAMSHAFT / VALVE
2015 CRF125F AC - CAMSHAFT / VALVE
2015 CRF125FB AC - CAMSHAFT / VALVE
2016 CRF125F AC - CAMSHAFT / VALVE
2016 CRF125FB AC - CAMSHAFT / VALVE
2017 CRF125F AC - CAMSHAFT / VALVE
2017 CRF125FB AC - CAMSHAFT / VALVE
2018 CRF125F A - CAMSHAFT / VALVE
2018 CRF125F AC - CAMSHAFT / VALVE
2018 CRF125FB A - CAMSHAFT / VALVE
2018 CRF125FB AC - CAMSHAFT / VALVE
2019 CRF125F A - CAMSHAFT / VALVE
2019 CRF125F AC - CAMSHAFT / VALVE
2019 CRF125FB A - CAMSHAFT / VALVE
2019 CRF125FB AC - CAMSHAFT / VALVE
2020 CRF125F A - CAMSHAFT / VALVE
2020 CRF125F AC - CAMSHAFT / VALVE
2020 CRF125FB A - CAMSHAFT / VALVE
2020 CRF125FB AC - CAMSHAFT / VALVE
2021 CRF125F A - CAMSHAFT / VALVE
2021 CRF125F AC - CAMSHAFT / VALVE
2021 CRF125FB A - CAMSHAFT / VALVE
2021 CRF125FB AC - CAMSHAFT / VALVE
2022 CRF125F A - CAMSHAFT / VALVE
2022 CRF125F AC - CAMSHAFT / VALVE
2022 CRF125FB A - CAMSHAFT / VALVE
2022 CRF125FB AC - CAMSHAFT / VALVE
2023 CRF125F A - CAMSHAFT / VALVE
2023 CRF125F AC - CAMSHAFT / VALVE
2023 CRF125FB A - CAMSHAFT / VALVE
2023 CRF125FB AC - CAMSHAFT / VALVE
2024 CRF125F A - CAMSHAFT / VALVE
2024 CRF125F AC - CAMSHAFT / VALVE
2024 CRF125FB A - CAMSHAFT / VALVE
2024 CRF125FB AC - CAMSHAFT / VALVE
2025 CRF125F A - CAMSHAFT / VALVE
2025 CRF125F AC - CAMSHAFT / VALVE
2025 CRF125FB A - CAMSHAFT / VALVE
2025 CRF125FB AC - CAMSHAFT / VALVE
