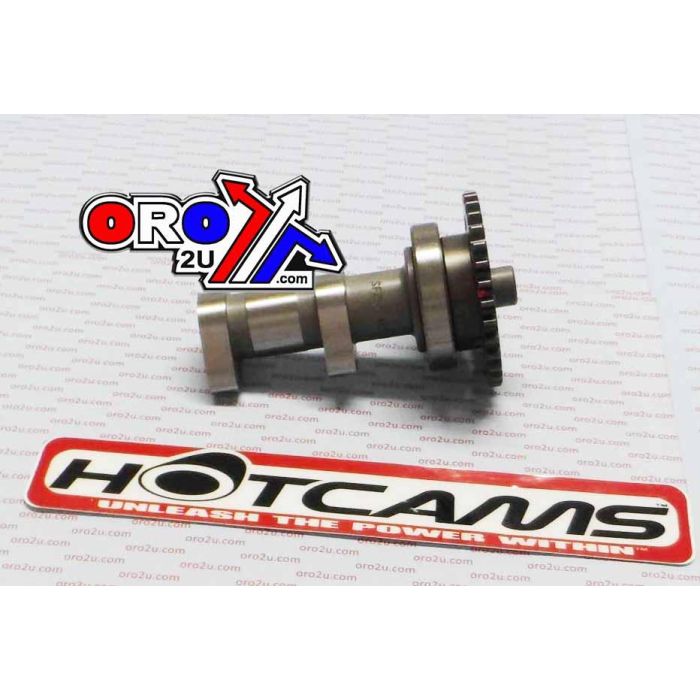

CAMSHAFT 08-14 RMZ450 INTAKE, HOTCAMS 2266-1IN

SUZUKI
RM-Z450 RMZ450 2008 - 2014,

Hot Cams Stage 1 Cam - 2266-1IN

Stage 1 ITR design intake cam. Dual cam engine. Good low end and midrange gains. Uses stock valve springs.

Extract maximum performance from your engine Hot Cams provide increased intake and exhaust duration for improved breathability and more horsepower Provides significantly more mid-range punch and top-end speed for most models Core trade-in not required so you can keep the original camshaft Dual-cam motor; intake Good low-end and mid-range gain Uses stock valve springs

Specs:
Intake Lift: 9.6mm Intake Duration (@1mm): 235.5 degrees

Part No. 56-C214.IN (oro2u.com)

Technical Specifications:

Exhaust Duration (Degrees at 1mm):

.00

Exhaust Lift (mm):

.00

Exhaust Lobe Center (Degrees):

.00

Exhaust Valve Lash (mm):

.00

Intake Duration (Degrees at 1mm):

235.50

Intake Lift (mm):

9.60

Intake Lobe Center (Degrees):

100.50

Intake Valve Lash (mm):

.13

Shim Kit:

HCSHIM02

S/SEED FROM 56-C223.IN TO 56-C214.IN
