CONNECTING ROD 10-16 KX250F, HOTRODS 8690 KAWASAKI KXF
SKU
56-942.HR
Retail Price£183.94£153.28Trade Only: Please login or Click here to find a dealer
1 In stock
PRODUCT INFORMATION
More Information
Brand
Hot Rods
Product Type
Connecting Rod
Product Group
Crankshafts & Parts
Catalogue
DIRT
VEHICLE FITMENT
DESCRIPTION
Kawasaki KX250F KXF250 2010 - 2016,
Hot Rods Connecting Rod Kit - 8690
High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Rods are double-forged to improve grain flow and maintain dimensional consistency
Rods are also shot-peened and double-honed for superior strength under heavy loads
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Thrust washers and crank pin bearings are silver-coated for added lubricity

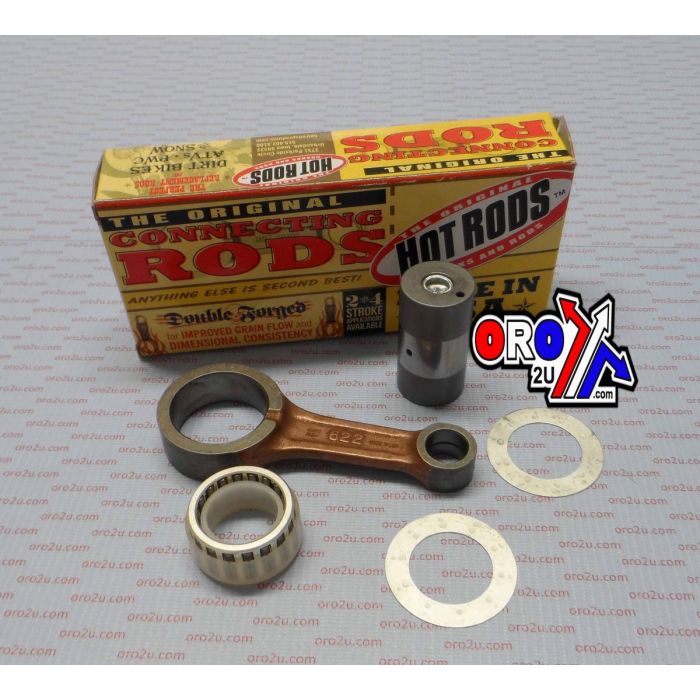

Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
Technical Specifications: Big End Bearing (mm): KU 30x38x17.8 Big End Bore (mm): 38.00 Big End Width (mm): 17.98 Center To Center (mm): 92.50 Pin Diameter (mm): 30.00
Kawasaki
2016 Kawasaki KX250F
2015 Kawasaki KX250F
2014 Kawasaki KX250F
2013 Kawasaki KX250F
2012 Kawasaki KX250F
2011 Kawasaki KX250F
2010 Kawasaki KX250F
Kawasaki KX250F KXF250 2010 - 2016,
Hot Rods Connecting Rod Kit - 8690
High-quality replacement kits are manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc
Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Rods are double-forged to improve grain flow and maintain dimensional consistency
Rods are also shot-peened and double-honed for superior strength under heavy loads
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Thrust washers and crank pin bearings are silver-coated for added lubricity
Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers
Technical Specifications: Big End Bearing (mm): KU 30x38x17.8 Big End Bore (mm): 38.00 Big End Width (mm): 17.98 Center To Center (mm): 92.50 Pin Diameter (mm): 30.00
