CONNECTING ROD 10-18 YZ450F, KIT PSYCHIC MX-09090 YAMAHA
SKU
56-857.DR
Retail Price
£120.67
£100.56
Trade Only: Please login or Click here to find a dealer
19 In stock
PRODUCT INFORMATION
| Brand | Psychic |
|---|---|
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Catalogue | DIRT |
VEHICLE FITMENT
DESCRIPTION

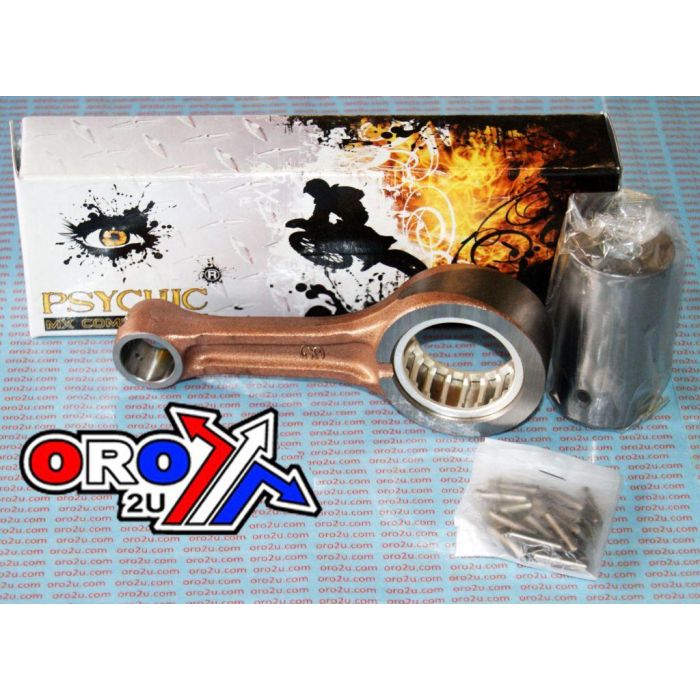

CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09090
YAMAHA
YZF450 / YZ450F 2010-2018,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 103 |
| Small End Bearing | None |
| Small End Bore Ø | 18 |
| Small End Width | 18 |
| Big End Bearing | 34x42x20.8 |
| Big End Bore Ø | 42 |
| Big End Width | 21 |
| Big End Pin Ø | 34 |
| Big End Pin Length | 61 |
| Washer Thickness | None |
SIZE PLEASE SEE DRAWING SIZE mm. A = 103, B = 18, C = 34, D = 18, E = 21, F = 61
Part No. 56-857.DR (oro2u.com)
Cross reference numbers ONLY.
Bearing MX-09090B,
Pin, Crank 5TG-11681-01-00,
Bearing 93310-63458-00,
Rod, Connecting 33D-11651-03-00,
