CONNECTING ROD 78-08 KX250, PSYCHIC MX-09033 KAWASAKI
SKU
56-110.DR
Retail Price
£69.98
£58.32
Trade Only: Please login or Click here to find a dealer
8 In stock
PRODUCT INFORMATION
| Brand | Psychic |
|---|---|
| Product Type | Connecting Rod |
| Product Group | Crankshafts & Parts |
| Catalogue | ATV, DIRT, ROAD |
VEHICLE FITMENT
DESCRIPTION

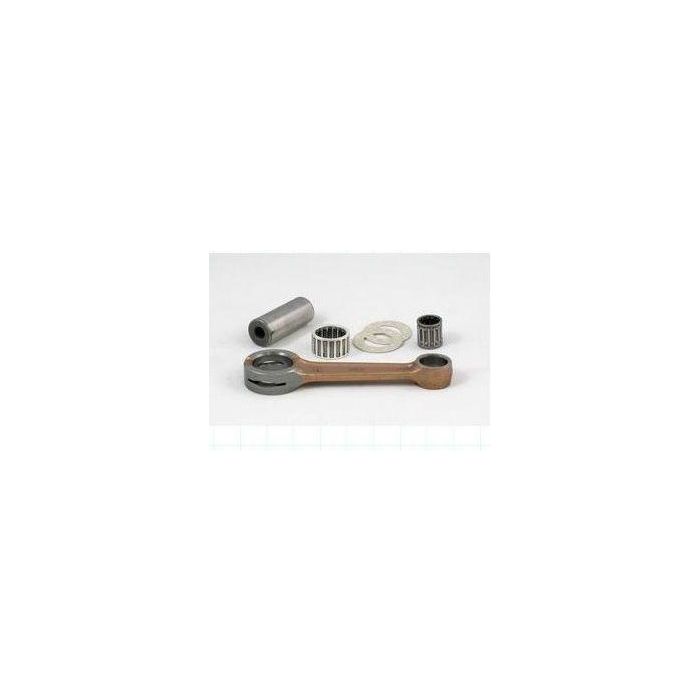

CONNECTING ROD REBUILD KIT PSYCHIC MX-09033
KAWASAKI
KX250 1978 - 2008
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 125, B = 18, C = 24, D = 20, E = 22, F = 58.5
ROD Center-Center 125.00mm
Small end EYE 18/22mm
WIDTH 20.00mm
Crank Pin 24.00 x 58mm Long
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 125 |
| Small End Bearing | 18x22x23.5 |
| Small End Bore Ø | 22 |
| Small End Width | 22 |
| Big End Bearing | 24x32x19.8 |
| Big End Bore Ø | 32 |
| Big End Width | 20 |
| Big End Pin Ø | 24 |
| Big End Pin Length | 58.5 |
| Washer Thickness | 24x42x1.0 |
Part No. 56-110.DR (Distributed oro2u.com)
Cross reference numbers ONLY.
RK-5207, 13032-1279, 13044-5056, PSYCHIC MX-09033, PROX 03.4309, WOSSNER P2022, HOTROD 8108, ATHENA P40321034,
