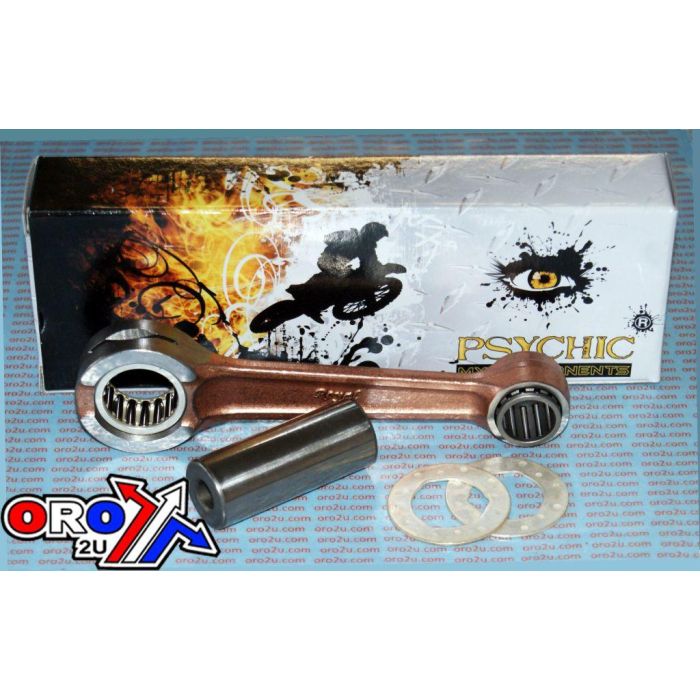

CONNECTING ROD 98-11 KTM200, NAMURA RX-70006, MX-09037, 52330015100

Heavy-duty OE replacement connecting rod kit designed for strength and reliability in demanding applications. Manufactured from certified SNCM220 chrome alloy steel, this kit meets or exceeds OEM quality standards. The crankpins are made from hot-rolled ASTM steel and case-hardened for durability, while silver-coated bronze phosphor thrust washers provide superior lubricity.

The rod assembly is fully compatible with aftermarket and OE crankshafts and is sold complete with a rod, crankpin, crankpin bearing, top-end bearing, and thrust washers where required. Factory-tested for 100% reliability, it is engineered to handle increased power loads.

Features:

• Heavy-duty connecting rods constructed from certified SNCM220 chrome alloy steel.
• Case-hardened hot-rolled ASTM steel crankpins for maximum durability.
• Silver-coated bronze phosphor thrust washers for enhanced performance.
• Compatible with aftermarket and OE crankshafts.
• Meets or exceeds OEM quality standards.
• Complete kit includes all necessary components for installation.
• Factory-tested for reliability and performance.

Specifications:

• Center to Center: 118 mm
• Small End Bearing: 16x20x19.70 mm
• Small End Bore: 20 mm
• Small End Width: 16 mm
• Big End Bearing: 22x28x15.8 mm
• Big End Bore: 28 mm
• Big End Width: 16 mm
• Big End Pin Diameter: 22 mm
• Big End Pin Length: 55.00 mm
• Washer Thickness: 22x37x1.00 mm

Cross-Reference OEM Part Numbers:

• KTM: 52330015100
• Hot Rods: 8668
• ProX: 03-6248
• RM-6206
• Wossner: P2031

Vehicle Fitments:

• KTM 200 EXC: 1998–2016
• KTM 200 MXC: 1998–2003
• KTM 200 SX: 2003–2005
• KTM 200 XC: 2006–2009
• KTM 200 XC-W: 2006–2016

Part Number: 56-865.NM
