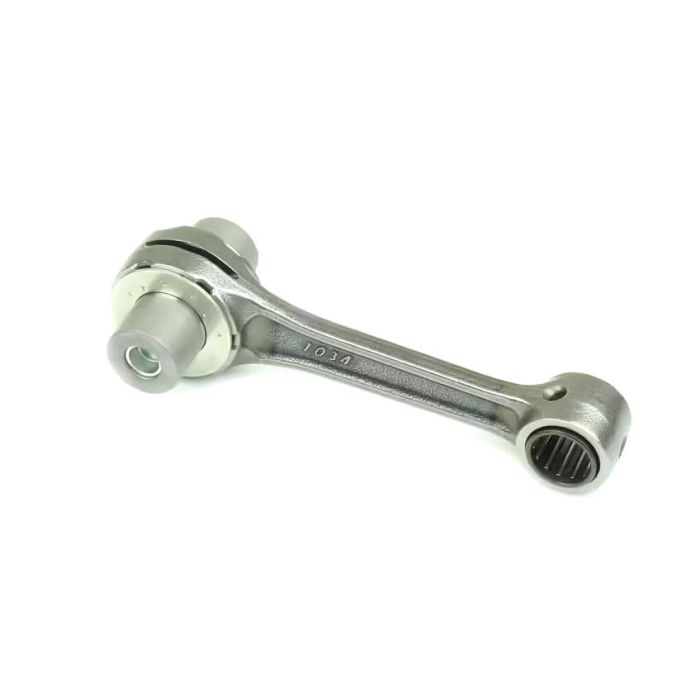

CONNECTING ROD KIT KX/KDX/KXF 250 78-08, ATHENA P40321034 KAWASAKI

ATHENA Connecting Rod Offroad Kit - P40321034

Description

Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.

Technical features

• Big End Bore (mm) 32.00
• Big End Pin Diameter (mm) 24.00
• Big End Width (mm) 20.00
• Center To Center (mm) 125.00
• Net Weight (Kg) 0.49
• Piston Pin Diameter (mm) 22.00
• Small End Width (mm) 22.00
• Washer Thickness (mm) 1.50

Partner Cross Reference code

• 13032-1279
• 13044-5056
• PSYCHIC MX-09033
• PROX 03.4309
• WOSSNER P2022
• HOTROD 8108
• ATHENA P40321034

Vehicle compatibility

• KAWASAKI KDX 250 cc 1991/1994
• KAWASAKI KX 250 cc 1978/2008
• KAWASAKI KXF A1 / A2 TECATE 4 250 cc 1987/1988

Part No. 56-110.ATH (oro2u.com)
