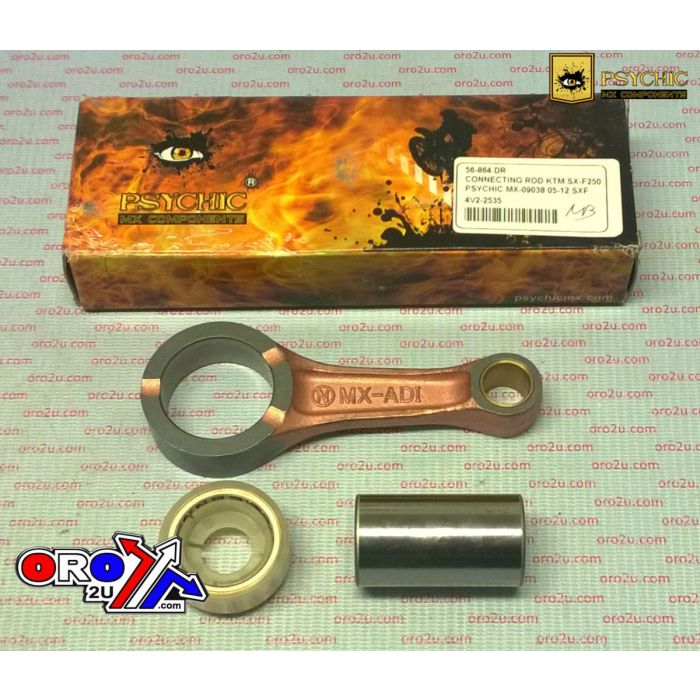

CONNECTING ROD KTM SX-F250, PSYCHIC MX-09038 05-12 SXF

Heavy-duty OE replacement connecting rod kit designed to meet or exceed OEM standards. Manufactured from certified SNCM220 chrome alloy steel, this kit delivers superior strength and reliability. The crankpins are made from hot-rolled ASTM steel and case-hardened for durability, while the latest caged needle roller bearing designs ensure high RPM longevity. The silver-coated bronze phosphor thrust washers provide enhanced lubricity, and the rod assembly is fully compatible with aftermarket and OE crankshafts.

All components are factory-tested for 100% reliability and designed to handle increased power loads, making them an ideal choice for performance-focused applications.

Features:

• Heavy-duty connecting rods for demanding applications.
• Certified chrome alloy steel construction for superior strength.
• Case-hardened hot-rolled ASTM steel crankpins for durability.
• Advanced caged needle roller bearings for high RPM performance.
• Silver-coated thrust washers for enhanced lubricity.
• Fully compatible with aftermarket and OE crankshafts.
• Factory-tested for reliability and designed to handle increased power loads.
• Direct OEM replacement with guaranteed satisfaction.

Specifications:

• Center to Center: 98 mm
• Small End Bearing: None
• Small End Bore: 16 mm
• Small End Width: 17.85 mm
• Big End Bearing: 30x38x17.8 mm
• Big End Bore: 38 mm
• Big End Width: 17.85 mm
• Big End Pin Diameter: 30 mm
• Big End Pin Length: 53.50 mm
• Washer Thickness: None

Cross-Reference OEM Part Numbers:

• Bearing MX-09010B
• Athena P40321042
• Psychic MX-09038
• ProX 03.6326
• Wossner P4003
• Hot Rods 8667
• 77030015144
• 77030015244

Vehicle Fitments:

• KTM 250 SX-F: 2005–2015
• KTM 250 XC-F: 2007–2015
• KTM 250 XCF-W: 2008–2013
• KTM 250 SXS-F: 2007–2008
• KTM EXC-F: 2006–2007
• KTM 350 SX-F: 2013–2015

Part Number: MX-09038
