CYLINDER FULL KIT 96mm 05-15 HONDA CRF 450 ATHENA STD BORE PISTON INCLUDED P400210100020

ATHENA Standard Bore Cylinder Kit Ø 96 mm, 450 cc - P400210100020

Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance.

All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.

Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.

The Standard Bore cylinder kit developed by Athena guarantees the same performance as the original spare parts, extreme reliability and optimal smoothness as a result of the lightweight aluminium cylinder, the barrel with nickel-silicon coating, and a piston designed to reduce further friction.

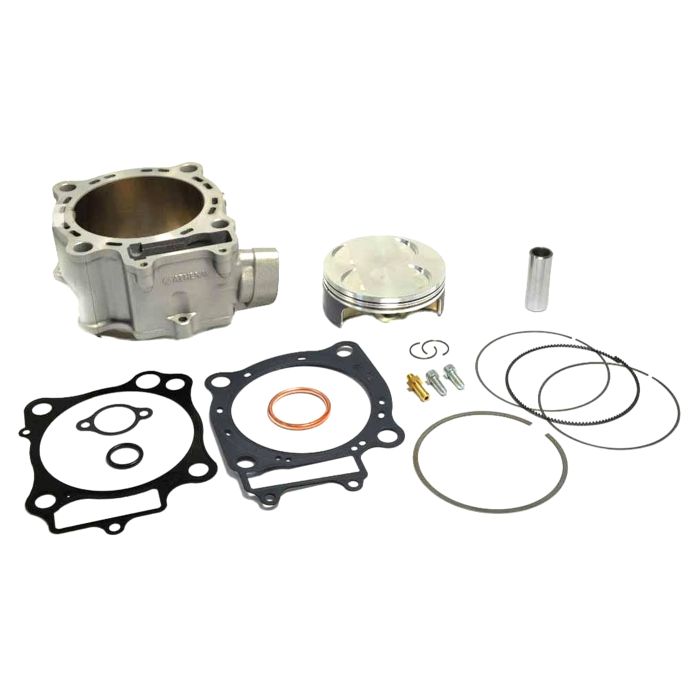

The kit includes the high-quality aluminium cylinder with standard bore, the complete piston with the piston pin and rings, and all the necessary gaskets.

All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.

This cylinder kit can be installed without making any changes to the engine crankcase.

CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.

Technical Features:

• Bore Diameter (mm) 96.00
• Compression Ratio 12.0:1
• Displacement (cc) 450
• Net Weight (Kg) 1.70

Cross Reference Numbers:

• S4F10000005A Piston Kit 99,95 12:1
• S4F10000005B Piston Kit 99,96 12:1
• P400210160016 Gaskets Kit
• S41316062 Rings EUR 66,62
• S11317047 Piston Pin

Vehicle Compatibility:

• HONDA CRE X IE 450 cc 2007/2008
• HONDA CRF X 450 cc 2005/2014
• HONDA CRMF CREF X 450 cc 2005/2009
• HONDA CRM X IE 450 cc 2007/2008
