CYLINDER MAGURA 0120657 90 MG0120657

SUZUKI RMZ450 2005 TO 2007 Models

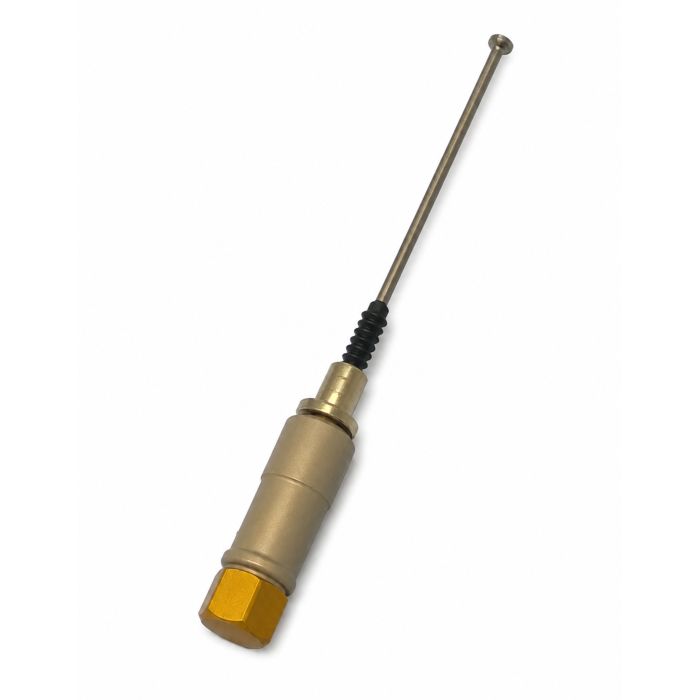

MAGURA SLAVE CYLINDER L 90mm
MAGURA 0120657

MAGURA 0120657 HYMEC CLUTCH SLAVE CYLINDER 105-107MM (90MM)

10mm wet travel distance | 10.5mm piston dia | Fully withdrawn length 90mm - To measure this, remove the slave cylinder from the clutch arm and carefully activate the master cylinder until the slave cylinder activation rod is fully retracted and withdrawn. Measure the distance from the bronze cap to the flange at the end of the rod. If the slave cylinder is dry, manually push the rod into the cylinder until the piston touches the bronze cap

Magura Slave Cylinder, fits HYMEC clutch conversion kits
Range of assembly sizes to suit specific bikes, please call or email to double check your fitment.
Made in Germany.

Part No. 13-0556.MA (oro2u.com)
