DISC BRAKE FRONT HONDA XR MTX CR MDS013

HONDA
1984-2004 Honda XR250R,
1987-1994 Honda CR125R,
1987-1994 Honda CR250R,
1991-1993 Honda XR250L,
1984-1985 Honda XR350R,
1984-1985 Honda XL350R,
1983-1995 Honda MTX80, MTX125, MTX200,

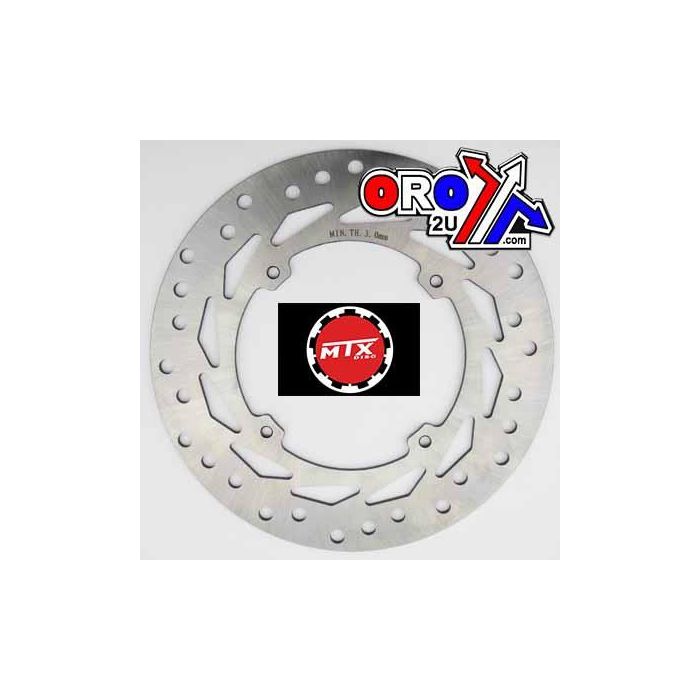

FRONT BRAKE DISC / ROTOR. MOTODISC MTX MDS013

• Rotor material has higher friction than plain stainless steel for added stopping power.
• Rotors measure 240mm.
• Designed to fit standard hubs.

Outer diameter: 240 mm
Inner diameter: 118 mm
Thickness: 3 mm
Number of bolt holes: 4
Hole diameter: 6,5 mm
Pitch: 134 mm
Countersink: No.

Part No. 40-110.MD.OE (oro2u.com)

Cross reference numbers ONLY.
MX-05549W , 20171108, 45351-KZ1-771, 45351-KPS-900 BRAKING HO09FID, EBC MD6001D, 5100-160, MOTO-MASTER 110295

Application:

1992-94       CR125R

1992-94       CR250R

1992-94       CR500R

2003-09       CRF150F

2003-15       CRF230F

2008-11       CRF230L

2009-11       CRF230M

1988-90       NX250

1991-96       XR250L

1991-04       XR250R

1991-95       XR250R Pro Link

1996-04       XR400R

1991-00       XR600R

1993-09, 12-18   XR650L

2000-07       XR650R
