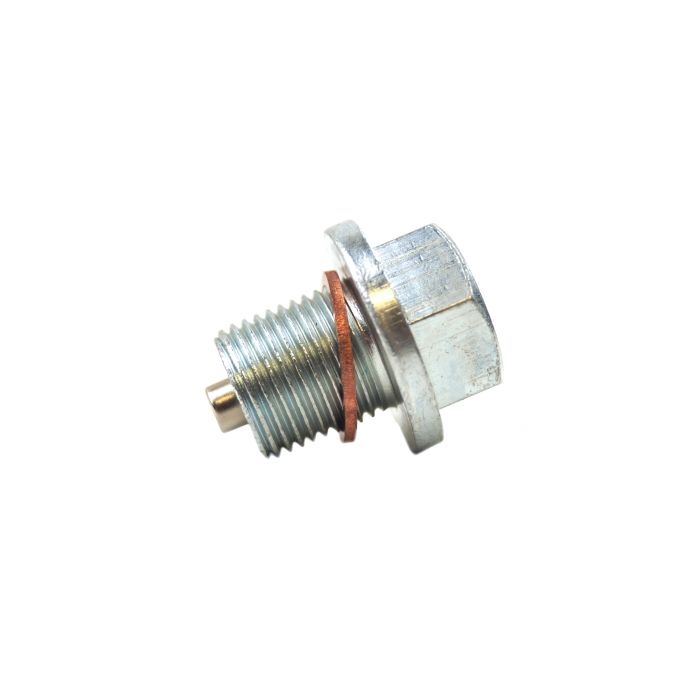

DRAIN PLUG M14x1.25mm STEEL, BIG FLANGE 24MM FLANGE

MAGNETIC DRAIN PLUG 14x1.25mm Steel.

Specification: M14 X P1.25 X )X 13.5
SIDE TO SIDE:13MM (-0.2MM)
FLANGE O.D.:24MM(+/-0.2MM)
With Sealing washer (14 X 17.1 X 1.2MM)

Steel Drain plugs are more reliable than alloy, the head will not round or snap off and the Magnet will not come loos as in alloy types.

Part No. 08-503 (oro2u.com)

Cross reference numbers ONLY.
K&L 15-4035, Suzuki 09248-10007,

Suzuki Motorcycle 1997 GSX-R1100W Crankcase
Suzuki Motorcycle 1997 RF900RV Crankcase
Suzuki Motorcycle 1998 GSX-R1100W Crankcase
Suzuki Motorcycle 1992 GSX-R600WP Crankcase
Suzuki Motorcycle 1994 GSX-R1100W Crankcase
Suzuki Motorcycle 1994 GSX-R750WS Crankcase
Suzuki Motorcycle 1995 GSX-R750W Crankcase
Suzuki Motorcycle 1995 GSX-R750WS Crankcase
Suzuki Motorcycle 1995 GSX-R1100W Crankcase
Suzuki Motorcycle 1994 RF900RV Crankcase
Suzuki Motorcycle 1994 RF600RT Crankcase
Suzuki Motorcycle 1996 GSX-R1100W Crankcase
Suzuki Motorcycle 1996 RF900RV Crankcase
Suzuki Motorcycle 1996 RF600RT Crankcase
Suzuki Motorcycle 1995 RF900RV Crankcase
Suzuki Motorcycle 1995 RF600R Crankcase
Suzuki Motorcycle 1995 RF600RT Crankcase
Suzuki Motorcycle 1993 GSX-R600WP Crankcase
Suzuki Motorcycle 1993 GSX-R1100W Crankcase
Suzuki Motorcycle 1993 GSX-R750W Crankcase
Suzuki Motorcycle 1993 GSX-R750WS Crankcase
Suzuki Motorcycle 1999 DR350SE Crankcase Cover
Suzuki Motorcycle 1998 DR350SE Crankcase Cover
Suzuki Motorcycle 1997 DR350SE Crankcase Cover
Suzuki Motorcycle 1993 DR350 Crankcase Cover
Suzuki Motorcycle 1995 DR350 Crankcase Cover
Suzuki Motorcycle 1993 DR350S CRANKCASE COVER (L/M/N/P)
Suzuki Motorcycle 1993 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1992 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1991 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1990 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1995 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1994 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1996 DR350SET CRANKCASE COVER (MODEL L/M/N/P)
Suzuki Motorcycle 1992 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1993 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1991 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1990 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1995 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1994 DR250SES CRANKCASE COVER (MODEL P/R/S)
Suzuki Motorcycle 1992 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1993 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1990 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1991 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1996 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1995 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1994 DR350SET CRANKCASE COVER (MODEL R/S/T)
Suzuki Motorcycle 1993 DR350S CRANKCASE COVER (R)
Suzuki ATV 2004 VINSON 4WD - LT-A500FB FINAL BEVEL GEAR (REAR)
Suzuki ATV 2004 VINSON 4WD - LT-A500FC FINAL BEVEL GEAR (REAR)
Suzuki ATV 2003 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)
Suzuki ATV 2003 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)
Suzuki ATV 2002 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)
Suzuki ATV 2007 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)('04/9~)
Suzuki ATV 2004 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)('04/9~)
Suzuki ATV 2006 EIGER AUTO 4WD - LT-A500F FINAL BEVEL GEAR (REAR)('04/9~)
Suzuki ATV 2005 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)('04/9~)
Suzuki ATV 2007 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)(~'04/8)
Suzuki ATV 2005 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)(~'04/8)
Suzuki ATV 2006 EIGER AUTO 4WD - LT-A500F FINAL BEVEL GEAR (REAR)(~'04/8)
Suzuki ATV 2004 VINSON 4WD - LT-A500F FINAL BEVEL GEAR (REAR)(~'04/8)
Suzuki ATV 2006 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K4)
Suzuki ATV 2007 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K4)
Suzuki ATV 2005 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K4)
Suzuki ATV 2004 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K4)
Suzuki ATV 2006 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K5/K6/K7)
Suzuki ATV 2007 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K5/K6/K7)
Suzuki ATV 2004 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K5/K6/K7)
Suzuki ATV 2005 VINSON 4WD - LT-F500F FINAL BEVEL GEAR (REAR)(MODEL K5/K6/K7)

2002 LT-A500F FINAL BEVEL GEAR (REAR)

2003 LT-A500F FINAL BEVEL GEAR (REAR)
2003 LT-F500F FINAL BEVEL GEAR (REAR)
2004 LT-A500F FINAL BEVEL GEAR (REAR)(%'04-8)
2004 LT-A500F FINAL BEVEL GEAR (REAR)('04-9%)
2004 LT-A500FB FINAL BEVEL GEAR (REAR)
