FLANGE INTAKE YAMAHA YFZ350/, RD350/RZ350 Carburetor Rubber 31K-13565-01-00

Intake Carb Flange / Holders Kit

Features:

• Cracked and leaking intake carb holders? Here's the cure!
• Sold as kit in the image.
• Color: Black & Dark Grey.
• Material: Metal, Rubber, and Paper.
• Easy to install but if unsure, please use a professional.

Size:

• Intake Manifolds: approx. 7.1 x 6.7 x 4.7cm (2.80 x 2.64 x 1.85 inch) (L x W x H).
• Intake Gaskets: approx. 7.1 x 6.7cm (2.80 x 2.64 inch) (L x W).
• Intake Inner Diameter: 34mm.
• Intake Outer Diameter: 44mm.
• Mounting Hole Distance: 48mm/58mm.
• Please see pictures for more detailed measurements.

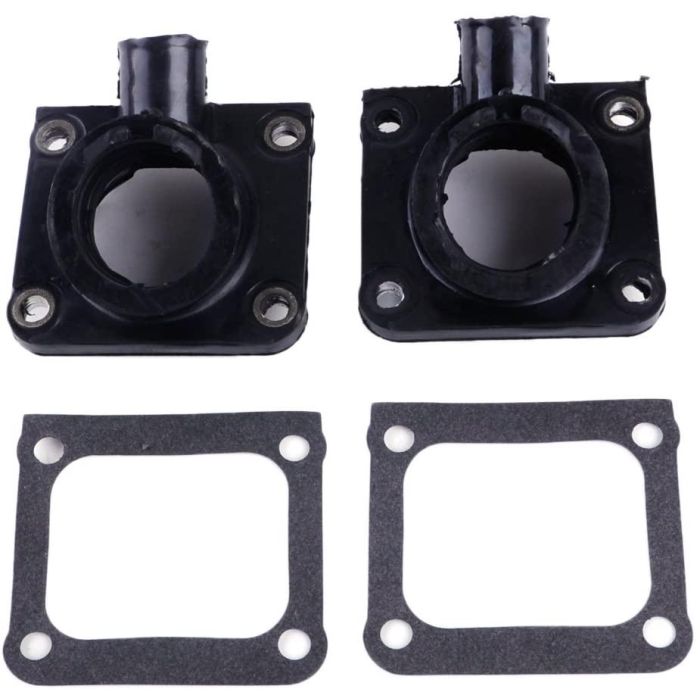

Kit Includes:

• 2 x Intake Manifolds
• 2 x Intake Gaskets
• 2 x Carb Flanges/Holders
• 2 x Reed Valve Gaskets

Cross Reference Numbers:

• K&L 11-4221
• QTY 2 x 31K-13565-01-00 Carb Flanges/Holders
• QTY 2 x 3GC-13621-00-00 Reed Valve Gaskets
• QTY 4 x 98580-03008-00 Pan Head Screws
• QTY 4 x 92990-03100-00 Spring Washers
• QTY 8 x 91316-06025-00 Carb Holder Bolts
• 31K-13565-01-00

Applicable Models:

Yamaha:

• YFZ350 Banshee 1987-2005
• RD350LC 1981-1982
• RZ350L/LC/N/NCII 1984-1985

Detailed Model Fitment:

• 1984 RZ350L - Air Filter
• 1985 RZ350N - Air Filter
• 1985 RZ350NC - Air Filter
• 1985 RZ350NCII - Air Filter
• 1987 YFZ350T - Air Filter
• 1988 BANSHEE (YFZ350U) - Air Filter
• 1989 BANSHEE (YFZ350W) - Air Filter
• 1990 BANSHEE (YFZ350A) - Air Filter
• 1991 BANSHEE (YFZ350B_MN) - Air Filter
• 1992 YFZ350D - Air Filter
• 1992 BANSHEE (YFZ350D_MN) - Air Filter
• 1993 BANSHEE (YFZ350E) - Air Filter
• 1993 BANSHEE (YFZ350E_MN) - Air Filter
• 1994 BANSHEE (YFZ350F) - Intake
• 1994 BANSHEE (YFZ350F_MN) - Intake
• 1995 BANSHEE (YFZ350G) - Intake
• 1995 BANSHEE (YFZ350G_MN) - Intake
• 1996 BANSHEE (YFZ350H) - Intake
• 1996 BANSHEE (YFZ350H_MN) - Intake
• 1997 BANSHEE (YFZ350J) - Intake
• 1997 BANSHEE (YFZ350J_MN) - Intake
• 1998 BANSHEE (YFZ350K) - Intake
• 1999 BANSHEE (YFZ350L) - Intake
• 2000 BANSHEE (YFZ350M) - Intake
• 2001 BANSHEE (YFZ350N) - Intake
• 2002 BANSHEE (YFZ350P) - Intake
• 2003 BANSHEE (YFZ350R) - Intake
• 2003 BANSHEE LE (YFZ350LER) - Intake
• 2004 BANSHEE (YFZ350S) - Intake
• 2004 BANSHEE - LIMITED EDITION BLACK (YFZ350LES) - Intake
• 2005 BANSHEE (YFZ350T) - Intake
• 2005 BANSHEE SE (YFZ350SET) - Intake
• 2006 BANSHEE (YFZ350V) - Intake
• 2006 BANSHEE SE (YFZ350SEV) - Intake
• 2006 BANSHEE SP (YFZ350SPV) - Intake
