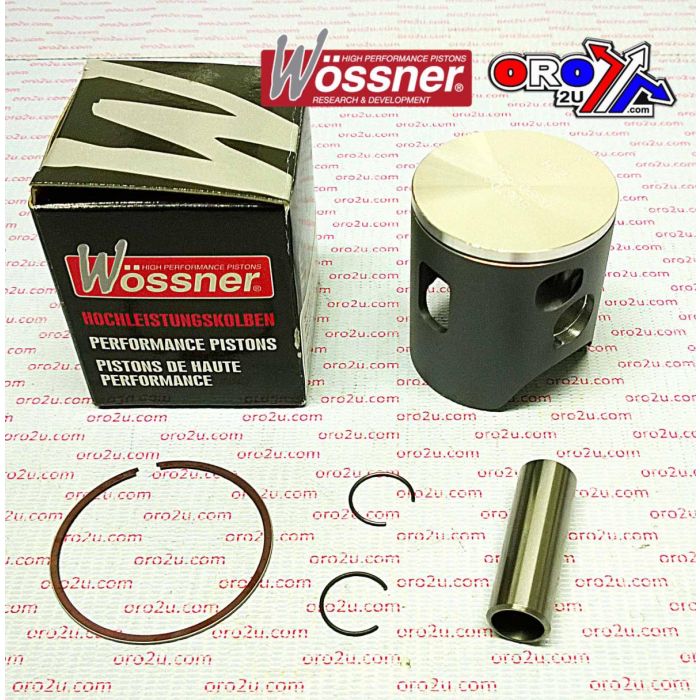

PISTON KIT 00-03 CR125 54.00 A, WOSSNER 8067DA HONDA MX

Piston kit 54mm Bore 53.95 Wossner 8067DA (STD)

HONDA
CR125 2000 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W676.A.WO (oro2u.com)
Wossner Piston Honda CR125 54 mm Bore (PN# 8067DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

2000 Honda CR 125 2001 Honda CR 125 2002 Honda CR 125 2003 Honda CR 125
Cross reference numbers ONLY.

NAMURA NX-10000, WOSSNER 8067DA, WISECO 676M05400 [ 13110-KZ4-A90 13120-KZ4-A90 / 13120-KZ4-A90 + 13111-KV3- 000 / 13111-KZ4-000 13111-KV3-000 / + 13121-KZ4-A91 + 94601 -15000 ]
