PISTON KIT 00-03 CR125 57.00, WOSSNER 8067D300 HONDA MX

Piston kit 57mm Bore 56.95 Wossner 8067D300 (+3.00)

HONDA
CR125 2000 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W676.P9.WO (oro2u.com)

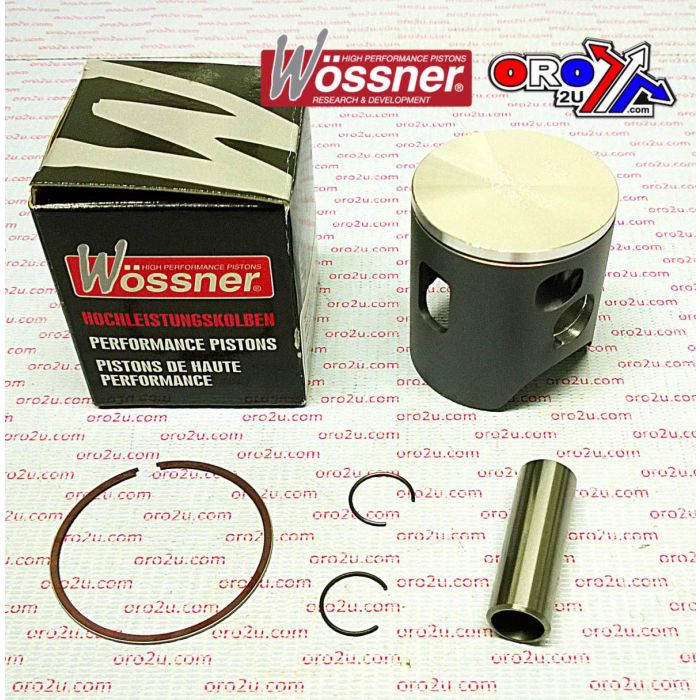

Wossner Piston Honda CR125 O/S +3.00mm 57.00mm Bore 8067D300
Lock P/N CW15
Pin P/N WP032Ring Set P/N RSB5700
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

2000 Honda CR 125 2001 Honda CR 125 2002 Honda CR 125 2003 Honda CR 125
