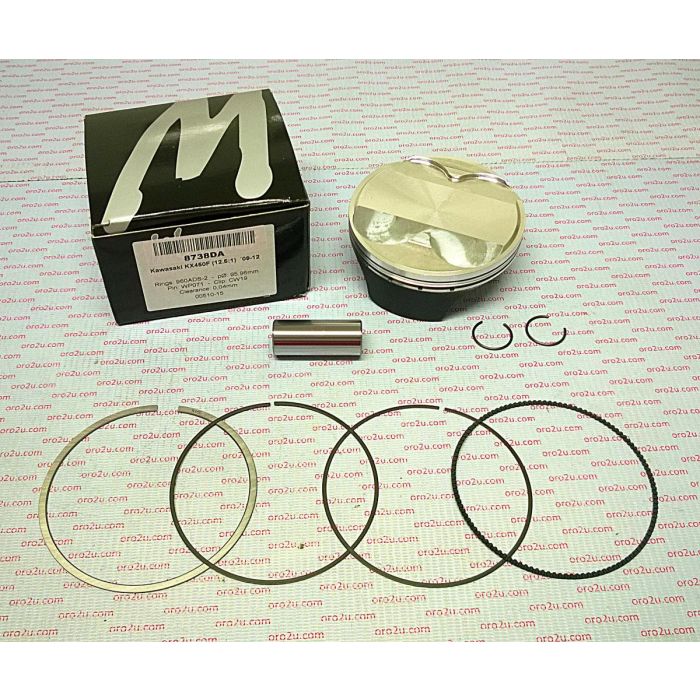

PISTON KIT 09-12 KX450F 96mm, WOSSNER 8738DC KAWASAKI

Piston Kit 96.01mm Bore 95.98 Wossner 8738DA (+0.02)

KAWASAKI KF450R 2009 - 2012

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

• Wossner Piston Kawasaki KX450F 96.02 mm Bore (PN#): 8738DC
• Lock P/N: CW19
• Pin P/N: WP071
• Ring Set P/N: 960ADS-2
• Rod P/N: P4020

Specifications:

• Display (cm3): 449
• Hub Stroke (mm): 62.10
• Clearance (mm): 0.04
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.50:1
• Dome Volume (cm3): +1.00
• Compression Height (mm): 23.70
• Theoretical Weight (G):
