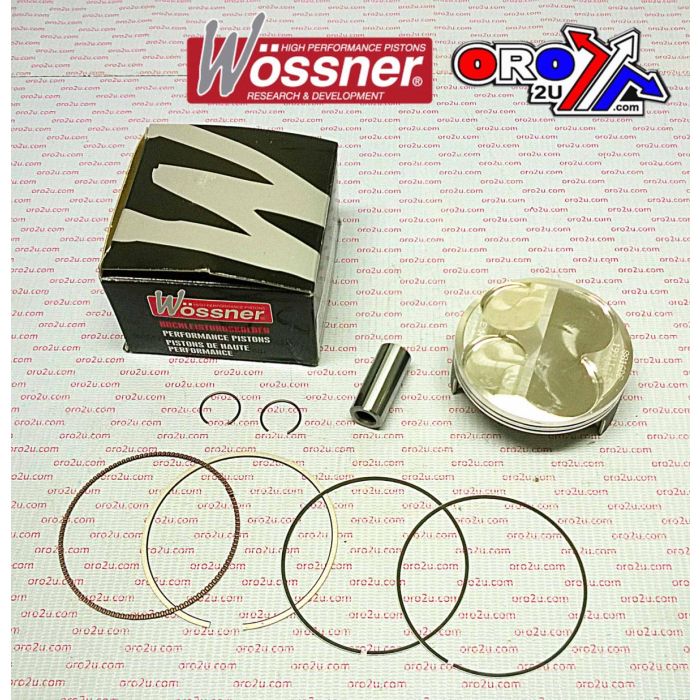

PISTON KIT 11-14 KX250F 77mm A, WOSSNER 8816DA KAWASAKI HC 13001-0125

Piston kit 77mm BORE 76.96 Wossner 8816DA (STD)

KAWASAKI
kx250F 2011 - 2014, (High compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Hard teflon skirt coating for perfect fit and conformability to your cylinder bore.

Part No. 56-W952.A.WO.HC (oro2u.com) Wossner Piston Kawasaki KX250F 77 mm Bore (PN# 8816DA)
Lock P/N CW16
Pin P/N WP070
Ring Set P/N 770XAS

Display (cm3) 250
Hub stroke (mm) 53.60
Clearance (mm) 0.04
Wossner compression Ratio: 14.20:1
OEM Compression ratio: 13.50:1
Dome volume (cm3) -1.70
Compression height (mm) 19.60
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0125,   40020M07700
