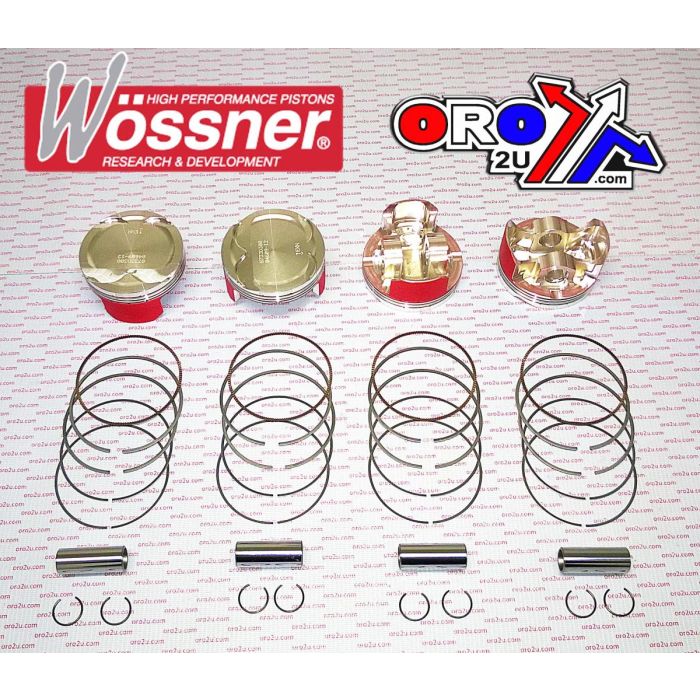

PISTON KIT SET/4 HAYABUSA 85 HC, WOSSNER K8730D400-4 SUZUKI, HC / 3-RING 99-07 DISP. 1429cc

Piston kit 85.00mm Bore 84.95 Wossner SET/4 K8730D400-4 (+4mm)

SUZUKI
HAYABUSA 1999 - 2007, (3 Rings)
(Pro series)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W9897.400.WO (oro2u.com)
SUZUKI HAYABUSA HC / 3-Ring 1999-2007,
PISTON KIT SET/4 WOSSNER K8730D400-4 O/S +4.00 BORE 85.00mm.
DISPLACEMENT 1429cc

CLIP No. CW20,
PISTON PIN No. WP029
REPLACEMENT RING SET No. 850XDS

Display (cm3) 1299 / 1395 / 1429
Hub stroke (mm) 63.00
Clearance (mm) 0.05
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 11.00:1
Dome volume (cm3) -2.45
Compression height (mm) 25.10
Theorectical weight (G)

Wossner is the innovative specialist for high performance

pistons and cylinder blocks. Wossner products are to be found in engines operating at the highest levels of motor sport competition and in everyday use.Wossner products are the source of the superior power behind the success of well known motor sport teams at national and international race meets.
