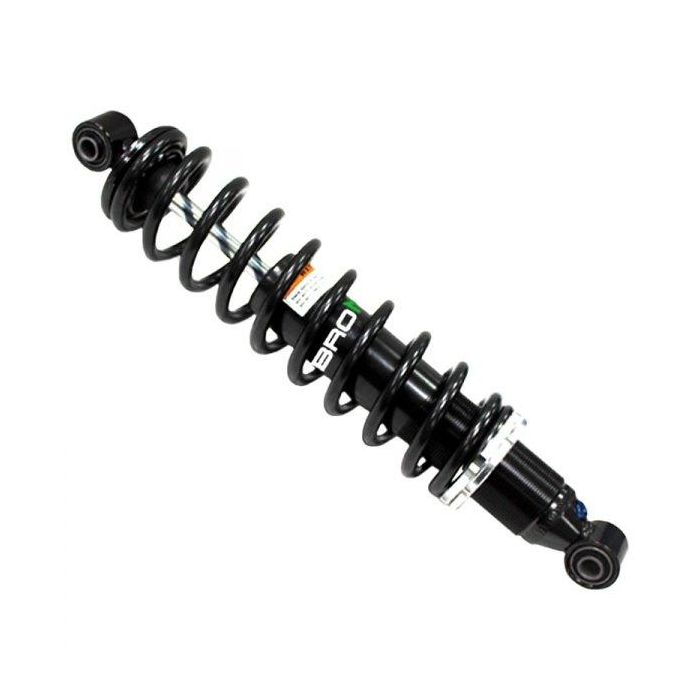

SHOCK FRONT YAMAHA GRIZZLY VIKING, BRONCO AU-04338, 1XD-F3390-00-00

BRONCO HEAVY DUTY GAS SHOCKS

Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

 FITMENT:

• YAMAHA GRIZZLY 700 4X4 2014 - 2015
• YAMAHA GRIZZLY 700EPS 4X4 2016 - 2020
• YXM 700 VIKING 2014 - 2020

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 44
• STROKE MM: -

• SPRING OD MM: 88

• SPRING WIRE DIAMETER MM: 10

• SPRING RATE LBS/INCH: 185

• SPRING RATE KG/MM: 3.30

• CENTER TO CENTER MM: 430

• CENTER TO CENTER IN: 17


BRONCO FRONT SHOCK AU-04338

Cross Refrence Numbers ONLY: 1XD-F3390-00-00
