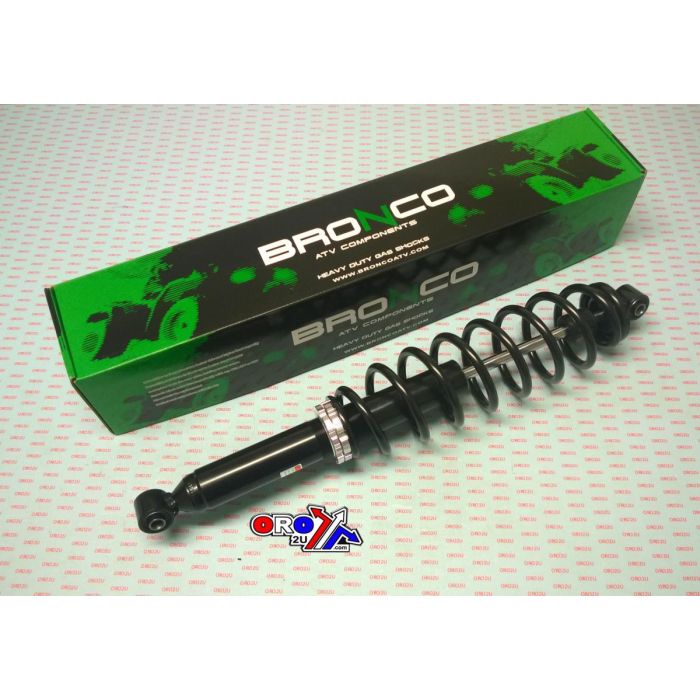

SHOCK REAR CAN-AM, BRONCO AU-04440, 706000958, 706001524

BRONCO HEAVY DUTY GAS SHOCKS Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers

 FITMENT:

• OUTLANDER 450 STD/DPS/T3 2016-18
• OUTLANDER L 450 2015-16
• OUTLANDER L 450 MAX 2015-16
• OUTLANDER MAX 450 2015-18
• OUTLANDER MAX 450 PRO/HUNTER 2017-18
• OUTLANDER MAX 450 XMR 2017-18
• OUTLANDER L 500 2015
• OUTLANDER L 500 MAX 2015
• RENEGADE 500 EFI 2013-15
• OUTLANDER 570 STD/XT/DPS 2016-18
• OUTLANDER L 570 STD/DPS/LE 2016
• OUTLANDER L 570 XMR 2016
• OUTLANDER L 570 PRO/HUNTER/XMR 2016
• OUTLANDER L 570 MAX 2016
• OUTLANDER 570 MAX STD/DPS/XT 2016-18
• OUTLANDER 570 MAX PRO/HUNTER 2017
• OUTLANDER 570 MAX XMR 2017
• RENEGADE 570 2016-18
• OUTLANDER 650 EFI 2013-18
• OUTLANDER 800R EFI 2012-15
• RENEGADE 800R EFI 2015
• OUTLANDER 850 2017-18
• RENEGADE 850 2016-17
• OUTLANDER 1000 EFI 2012-18
• RENEGADE 1000R 2016-17

SPECIFICATIONS

• POSITION TOP HOLE I.D MM: 10
• TOP EYELET WIDTH MM: 32

• BOTTOM HOLE I.D MM: 10
• BOTTOM EYELET WIDTH MM: 32

• TUBE O.D MM: 38
• STROKE MM: 167

• SPRING OD MM: 93.2

• SPRING WIRE DIAMETER MM: 8.6

• SPRING RATE LBS/INCH: 95

• SPRING RATE KG/MM: 1.7

• CENTER TO CENTER MM: 502

• CENTER TO CENTER IN: 19 3/4


Cross Refrence Numbers ONLY: 706000958, 706001524
