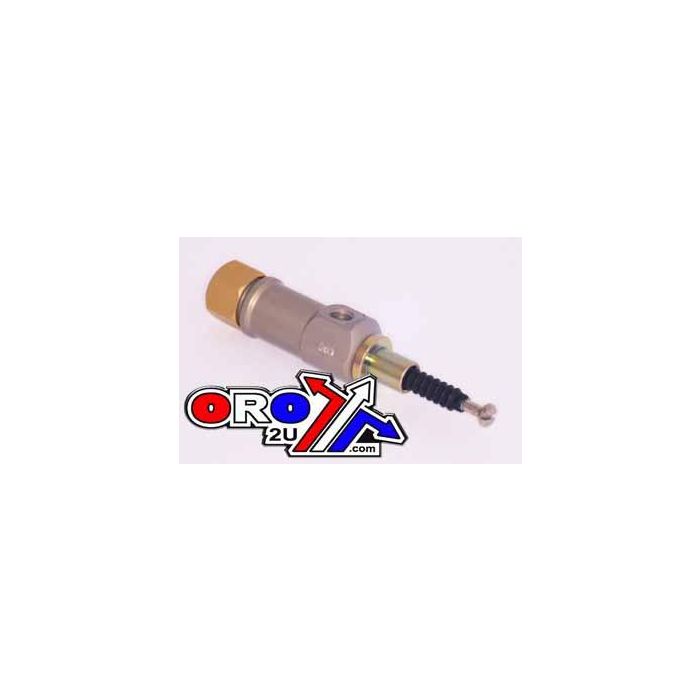

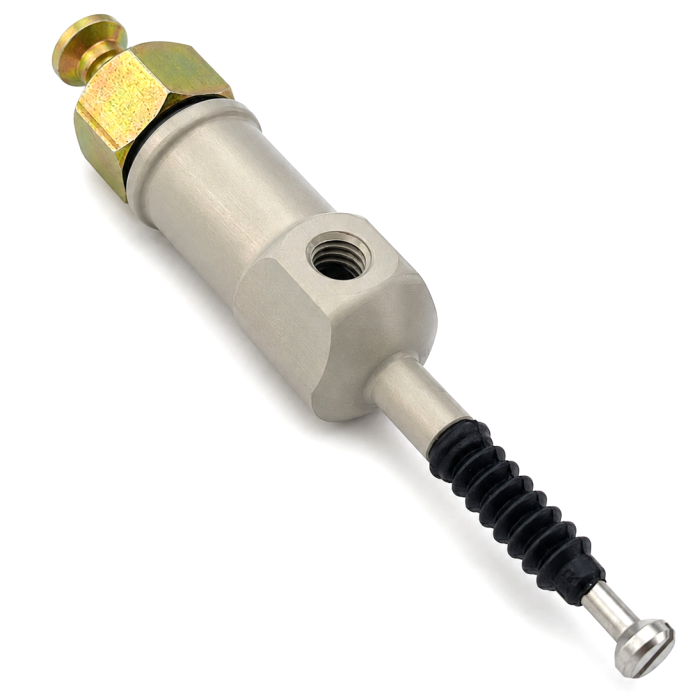

SLAVE CYLINDER CR250 31/47mm, MAGURA 0120648

HYMEC SLAVE CYLINDER 10.5 x 31/47mm MAGURA 0120648

31mm Withdrawn Length, 46-48mm Activated Length

HONDA CR250R 1990-03; CR500R 1984-03 (Requires additional parts 0430987, 0488255) ; KAWASAKI KXF250 2004-08; KTM 250SX/300/360 1990-94; LC4 MODEL 1996-03; 620SX/620SC 1997-02; SUZUKI RM250 1997-03; RMZ250 2004-08; YAMAHA YZ250 1999 -03 (Requires addiotional parts: 0430987, 0488255) ; YZ250 2005-09

stroke when bled correctly | 10.5mm piston dia | Fully withdrawn length 31mm - To measure this, remove the slave cylinder from the clutch arm and carefully activate the master cylinder until the slave cylinder activation rod is fully withdrawn into the slave cylinder body. Measure the distance from the shoulder of the sleeve where the rod protrudes from the slave cylinder to the nipple at the end of the rod. If the slave cylinder is dry, manually push the rod into the cylinder until the piston touches the bronze cap.

Part No. 13-053.47 (oro2u.com)

Cross reference numbers ONLY.
0430985, 0488255); | 10mm
