SUZUKI PISTON KIT 13-23 RMZ 450 PRO SERIES 96.00, WOSSNER 8993DA SUZUKI RM-Z450

Piston kit 96mm Bore 95.95 Wossner 8993DA (STD)

SUZUKI
RM-Z450 2013 - 2023,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W4982.A.WO (oro2u.com)

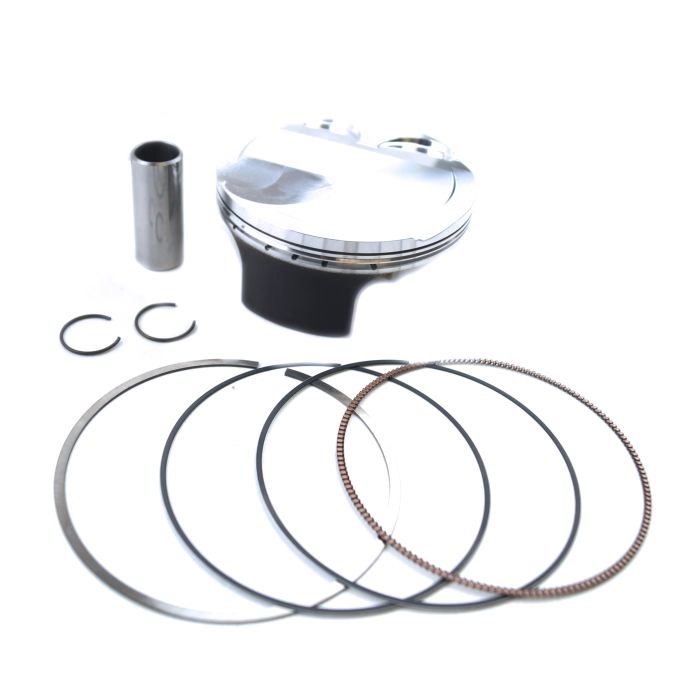

Wossner Piston Kit (PN# 8993DA)

Piston Size: 95.96MM

Piston Size: 95.96

Lock P/N CW19

Pin P/N WP028-SP

Ring Set P/N RIK96.00E

Oversize: STANDARD

Clearance (mm) 0.05MM

Wossner compression Ratio: OEM

Compression height (mm) 22.90

OEM Compression ratio: 13.30:1

Theorectical weight (G) 255.00
