UNIVERSAL JOINT KAWASAKI, ALLBALLS 19-1010 ATV700

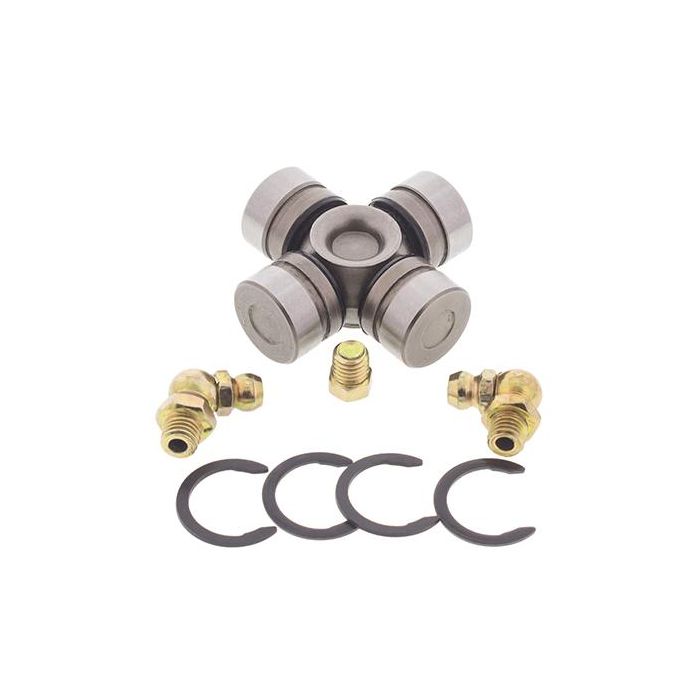

All Balls U-Joint Kit - 19-1010

• Specifications:
  • 16mm diameter / 27.6mm wide with inside snap rings
  • U-Joints are cold forged from SCM-415 steel
  • Precision ground journals are case hardened to HRC58-61
  • Pre-greased with hi-temp Lithium Complex 3 grease
  • Zerk and grease channels in bearing cup evenly distribute grease
  • Includes cap plug to eliminate grease zerk for low clearance applications
  • Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm and feature stainless steel clamps and hi-quality neoprene rubber boots for long life and abrasion resistance
  • Front drive shaft differential and engine sides only on the following models:

Kawasaki:

• KLF300C Bayou 4x4 (1989-2004)

• KAF 620 A Mule 2510 4x4 (1993)

• U-Joint, Front Drive Shaft-Diff Side (Ref 2)

  • Compatible with: Kawasaki KLF300C Bayou 4x4 (1989-2005), Mule 2510 4x4 (1993-1999)

• U-Joint, Front Drive Shaft-Eng Side (Ref 3)

  • Compatible with: Kawasaki KLF300C Bayou 4x4 (1989-2005), Mule 2510 4x4 (1993-1999)

ALLBALLS U-JOINT KITS

• Applications:
  • Location: Front Axle Inner
  • Location: Front Drive Shaft (Diff Side)
    • Compatible with: Kawasaki ATV: KLF300C Bayou 4x4 (1989-2004), Kawasaki UTV: Mule 2510 4x4 (1993)
  • Location: Front Drive Shaft (Engine Side)
    • Compatible with: Kawasaki ATV: KLF300C Bayou 4x4 (1989-2004)
