UNIVERSAL JOINT POLARIS, ALLBALLS 19-1011 ATV503

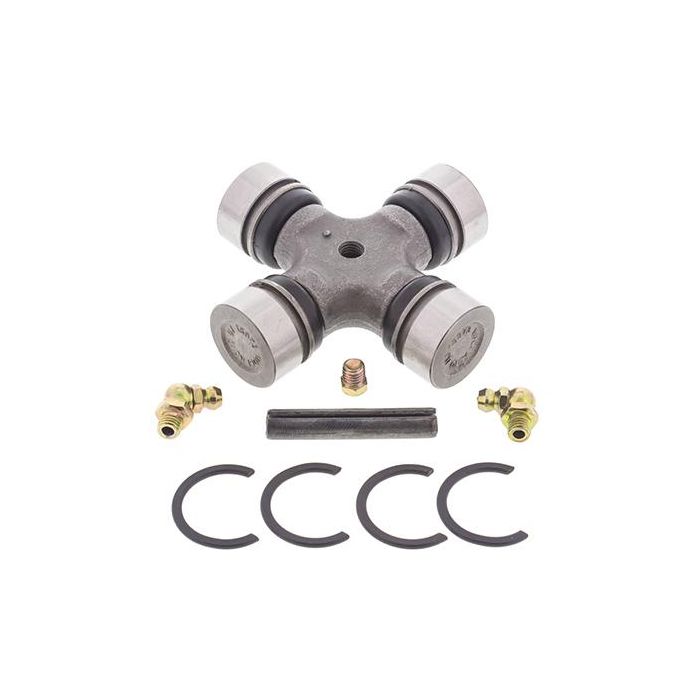

All Balls U-Joint Kit - 19-1011

• Specifications:
  • Diameter: 1 in.
  • Width: 2.38 in.
  • Features inside snap rings
  • U-Joints cold forged from SCM-415 steel
  • Precision ground journals case hardened to HRC58-61
  • Pre-greased with hi-temp Lithium Complex 3 grease
  • Zerk and grease channels in bearing cup evenly distribute grease
  • Includes cap plug to eliminate grease zerk for low clearance applications
  • Honda yoke assemblies have upgraded cross diameters from 17mm to 19mm and feature stainless steel clamps and hi-quality neoprene rubber boots for long life and abrasion resistance

Applications:

• Front drive shaft differential and engine side only for the following models:

  Polaris:

  • Xplorer 250 4x4 2000
  • Ranger 500 6x6 2000
  • Sportsman 500 6x6 2000

• Rear axle inner only on the following models:

  Polaris:

  • Sportsman 335 4x4 1999-2000
  • Diesel 455 4x4 1999
  • Sportsman 500 1996-1998
  • Sportsman 500 4x4 1998
  • Xplorer 500 1997

Cross Reference Numbers Only:

• ATV503
