VARIATOR LOCKING TOOL KYMCO 50 2 Stk. ROAD, ATV, MX, SCOOTER

VARIATOR Drive blocks kymco 50cc. 2 Stk.

Size. Center of hole to center of pge 144mm.

Kymco Agility 50 RS 2T,
Kymco Agility 50 RS 2T Naked KE10BB,
Kymco Bet&Win 50 SH10CB / SH10CC,
Kymco Grand Dink 50 G-Dink SF10RA,
Kymco Grand Dink 50 SF10JA,
Kymco Grand Dink 50S SF10JB,
Kymco Heroism 50 Calypso 50 KCZ SB10AC,
Kymco Like 50 2T / Like 50 2T LX KE10AA / KE10AD,
Kymco MXU 50,
Kymco MXer 50 (Mongoose),
Kymco Maxxer 50,
Kymco Maxxer 50 (with title)
Kymco People 50 BF10AC / BF10AG,
Kymco Super 8 50 2-stroke KF10AA,
Kymco Super 8 50 2-stroke KF10CA,
Kymco Super 9 AC 50 SF10DA / SF10DL / SF10DN,
Kymco Super 9 AC 50 Sports SF10DS,
Kymco Super 9 LC 50 SH10DA / SH10DD / SH10DL,
Kymco Top Boy 50 (COBRA) SF10AF / SF10AG / SF10AK,
Kymco Vitality 50 2-stroke and cross SF10FA / SF10FE,
Kymco YUP 50 SF10EA / SF10EC / SF10EE,
Kymco Yager 50 (Spacer 50) SH10AC / SH10AE,

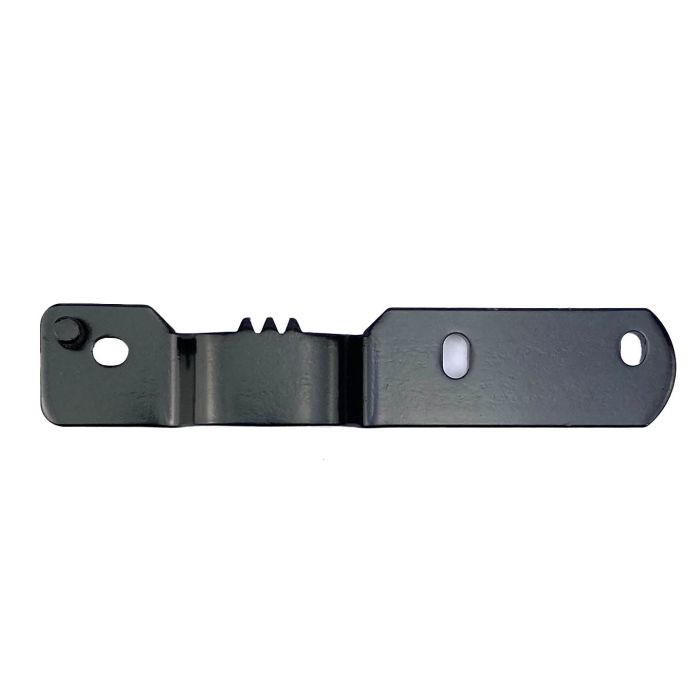

This is a specially made Variator locking tool for blocking the variator on Kymco engines during assembly and dismantling.
Easy handling makes work fast and professional. The tool is simply placed over the teeth of the Kickstarter carrier and fixed into the two long holes with a screw or bolt on the engine housing. The variator nut can then be easily secured or loosened.
Unfortunately, the required screws or bolts are not included and have to be ordered separately. This tool is best suited for working on the drive system as a piston stop. This removes the risk of damage to the piston.

Part No. 00-0055.P (oro2u.com)

Cross reference numbers ONLY.
OUT1095, BUZZETTI 5580
